MERR Dataset Construction
A detailed guide on how the MERR dataset was constructed using our automated pipeline.
Table of Contents
- Construction Pipeline
- Data Source
- Construction Steps
- Example Annotation
- Quality Control
- Limitations
- Future Improvements
- Tools and Models Used
- Access the Pipeline
- Questions?
Construction Pipeline
We built a unified MER dataset construction pipeline called MER-Factory.
Full documentation is available at: MER-Factory Documentation
Data Source

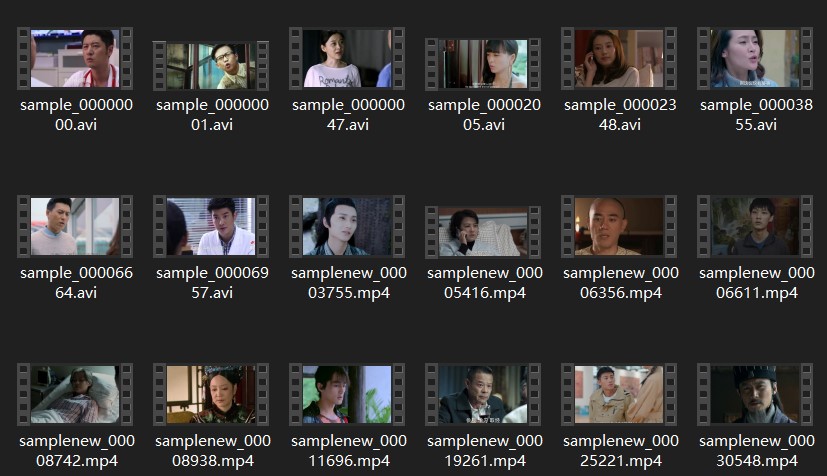

The MERR dataset is constructed from MER2023-SEMI, which contains over 70,000 unlabeled video clips. We utilize several powerful multimodal models to extract emotional cues from different modalities, and then use the LLaMA-3 model to summarize all emotional cues for inference, resulting in the final multimodal description.
Construction Steps
Step 1: Data Filtering

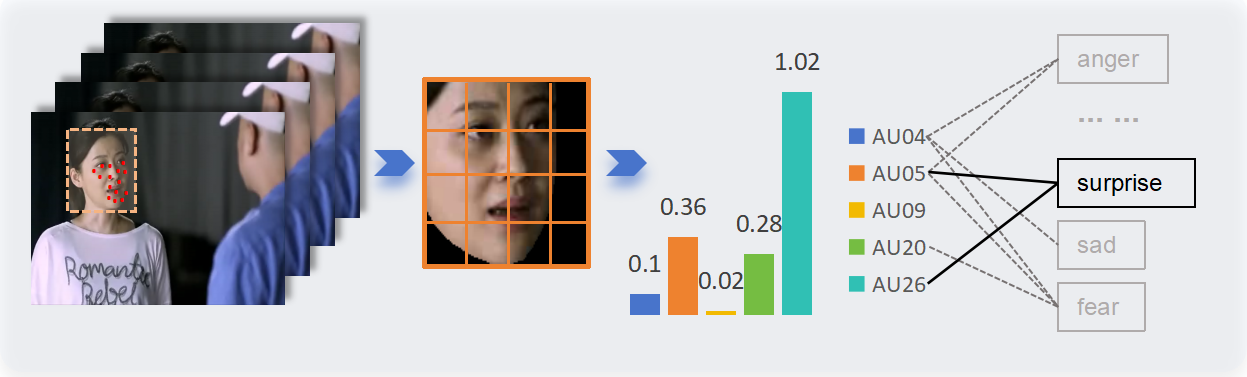

We employed OpenFace to extract faces from video segments, which were then aligned to identify various facial muscle movements, resulting in the detection of Action Units (AUs).
Certain combinations of these muscle movements correlate with specific emotions:
- Surprise: AU05 (upper lid raiser) + AU26 (jaw drop)
- Happiness: AU06 (cheek raiser) + AU12 (lip corner puller)
- Sadness: AU01 (inner brow raiser) + AU04 (brow lowerer) + AU15 (lip corner depressor)
- Anger: AU04 (brow lowerer) + AU05 (upper lid raiser) + AU07 (lid tightener) + AU23 (lip tightener)
Each specific combination of Action Units was assigned a pseudo-label, signifying that the sample was selected and exhibited strong emotional expression characteristics.
Result: 28,618 samples were selected and assigned pseudo-labels.
Step 2: Visual Expression Description
Due to natural actions such as blinking and speaking in the videos, different combinations of Action Units are extracted from various frames. Thus, determining the AUs that most accurately represent the current emotion is crucial.

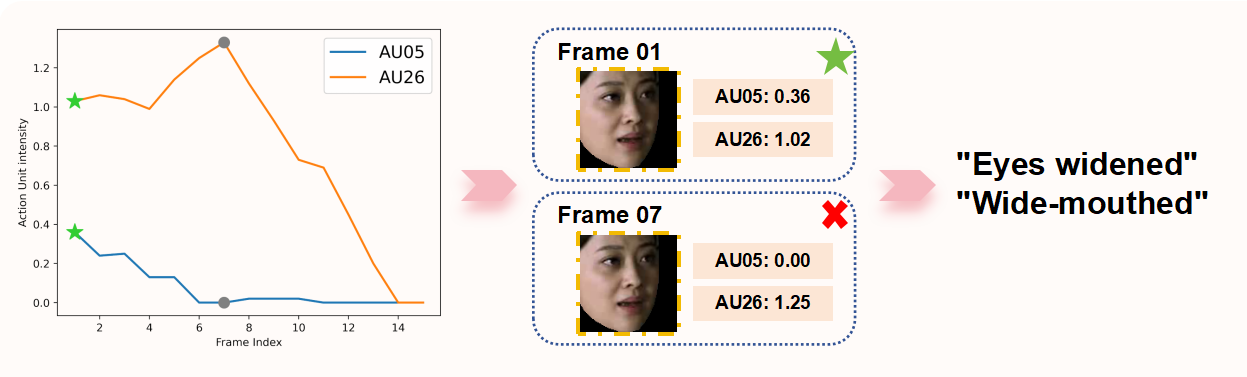

Our approach involves analyzing the amplitude values of the Action Units to identify the “emotional peak frame”:
- Identify the most frequently occurring Action Units across all frames
- Sum their amplitude values
- Select the frame with the highest total as the emotional peak frame
- Map the Action Units of this frame to their corresponding visual expression descriptions
Step 3: Visual Objective Description
We input the complete emotional peak frame into the MiniGPT-v2 model, enabling it to describe:
- Scene context
- Character gestures and postures
- Environmental factors
- Visual details
Example output:
A person is sitting in a dimly lit room, their face showing signs of distress
with furrowed brows and a slight frown. Their body posture is tense, with
shoulders slightly hunched forward.
Step 4: Audio Tone Description
We use audio as input for the Qwen-Audio model, which then describes:
- Speaker’s tone and intonation
- Voice quality (pitch, volume, speed)
- Emotional prosody
- Acoustic patterns
These audio clues are equally crucial for understanding the emotion.
Example output:
The speaker's voice is trembling slightly, with a lower pitch and slower pace,
indicating a sad or distressed emotional state.
While Qwen-Audio performs well among various large audio models, some errors are present in emotion descriptions since these models are not specifically trained on emotional content.
Step 5: Coarse-Grained Synthesis
By integrating visual and audio descriptions with lexical subtitles in a templated sequence, we generate a coarse-grained emotional description.
Template structure:
[Visual Expression] + [Audio Tone] + [Textual Content] → Emotion Label
Result: 28,618 coarse-grained descriptions were produced.
Example coarse-grained annotation:
Visual: Furrowed brows, slight frown, tense posture
Audio: Trembling voice, lower pitch, slower pace
Text: "I can't believe this is happening..."
Label: Sadness
Step 6: Fine-Grained Generation
Merely concatenating components does not truly explain the triggers behind emotions. Therefore, we input all emotional clues into the LLaMA-3 model to:
- Sift through and correctly identify relevant clues
- Combine different cues for inference
- Generate comprehensive emotional descriptions
- Filter erroneous or contradictory descriptions
Since the emotional clues previously gathered were unverified, they included some erroneous or contradictory descriptions. Using the output from LLaMA-3, we could easily filter out these samples.
Additionally, we:
- Removed duplicates from the original dataset
- Randomly selected neutral samples to enrich the dataset
- Balanced the distribution across emotion categories
Result: The final MERR dataset contains 4,487 samples with detailed multimodal descriptions.
Example Annotation
Here’s a complete example of a fine-grained annotation:
The annotation includes:
- Video ID: sample_00000047
- Emotion Label: Happiness
- Peak Frame: Frame 23 (highest AU activation)
- Action Units: AU06 + AU12 (happiness indicators)
- Visual Description: “Genuine smile with raised cheeks and pulled lip corners”
- Audio Description: “Bright, higher-pitched voice with upward intonation”
- Text: “I’m so excited to share this news with you!”
- Multimodal Reasoning: “The combination of a genuine smile (Duchenne smile with AU06 and AU12), enthusiastic vocal tone, and positive language indicates strong happiness and excitement about sharing positive news.”
Quality Control
Filtering Criteria
We applied multiple quality control measures:
- AU Confidence Threshold: Only frames with AU detection confidence > 0.8
- Audio Quality: Signal-to-noise ratio (SNR) > 20dB
- Video Quality: Resolution ≥ 480p, clear facial visibility
- Text Quality: Proper transcription with < 10% error rate
- Consistency Check: Cross-modal consistency validation
Human Verification
A subset of 500 samples was manually verified by human annotators:
- Agreement rate: 94.2% for coarse-grained labels
- Agreement rate: 91.8% for fine-grained descriptions
Limitations
Disgust Emotion
During the data annotation process, only 2 “disgust” samples were identified. Due to their limited number, we chose not to include them in the MERR dataset.
We plan to explore more effective data filtering techniques to uncover more samples of less common emotions.
Audio Model Limitations
In our tests and usage, Qwen-Audio performed exceptionally well among various large audio models. However, since these models are not specifically trained on emotional content, many errors are present in the emotion descriptions.
Further research into the application of large audio models in emotion recognition is needed.
Language Limitation
The current dataset primarily contains Chinese language content with English translations. Expanding to more languages is part of future work.
Future Improvements
We are actively working on:
- Emotion Coverage: Techniques to identify rare emotions like disgust and contempt
- Audio Models: Training emotion-specific audio analysis models
- Multilingual Support: Expanding to multiple languages
- Real-world Scenarios: Including more diverse contexts and situations
- Temporal Dynamics: Better capturing emotion transitions over time
Tools and Models Used
| Component | Model/Tool | Purpose |
|---|---|---|
| Face Detection | OpenFace | Extract facial features and Action Units |
| Visual Description | MiniGPT-v2 | Generate scene and gesture descriptions |
| Audio Description | Qwen-Audio | Analyze tone and vocal characteristics |
| Fine-grained Generation | LLaMA-3 | Synthesize multimodal reasoning |
| Feature Extraction | HuBERT, EVA, MAE, VideoMAE | Extract multimodal features |
Access the Pipeline
To use our dataset construction pipeline for your own data:
- Visit MER-Factory
- Follow the documentation
- Customize the pipeline for your needs
Questions?
For questions about the dataset construction process:
- Open an issue on GitHub
- Refer to the MER-Factory documentation
- Contact the authors
